Inicio /Productos/Motor de arranque automático/110cc Electric Kick Start Motorcycle Engine Assembly

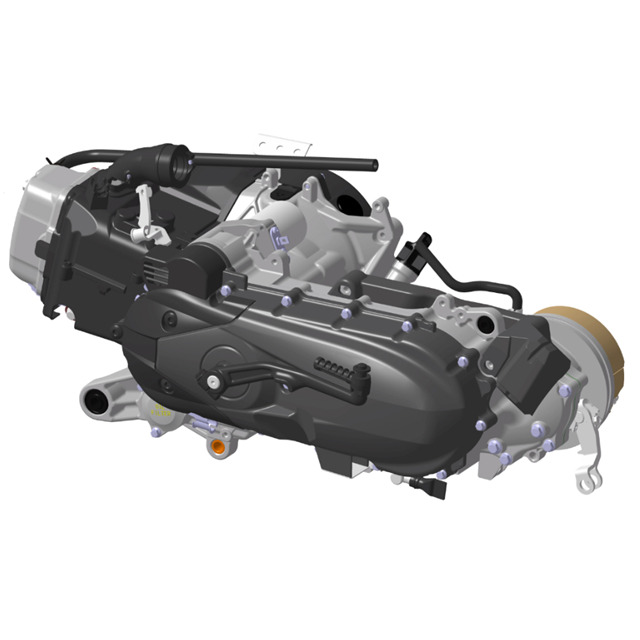

110cc Electric Kick Start Motorcycle Engine Assembly

50 pieces
MOQ
110cc Electric Kick Start Motorcycle Engine Assembly
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Stroke: 4 Stroke
Cold Style: Air-cooled
Start: Electric / Kick
Cylinder NO.: 1 Cylinder
Ignition Method: CDI
Displacement (ml): 108.2ml
Warranty: 2 Years or 30000 KM
Engine model: JL1P50QMH-2(J23L 110)
Type: Single cylinder,4-stroke,forced air-cooled
Cylinder diameter (mm): 50mm
Piston stroke (mm): 55.1mm
Total displacement (ML): 108.2ml
Compression ratio: 9.5:1
Max power correspond crankshaft speed: 6.0kW/7500rpm
Min torque correspond crankshaft speed: 8.5N.m/6000rpm
Minimum no-load stable speed: 1700r/min
Certificación: CE
Información básica
Certificación: CE
Model Number: JL1P50QMH-2(J23L 110)
Pago y Envío Términos
Packaging Details: Single package size: 75 x 50 x 35 cm. Single gross weight: 30.00 kgs. One set one carton box.
Supply Ability: 5000 Piece/Pieces per Month
Descripción de producto
Products Description
Efficient energy gathering, stable and comfortable
Powerful, the maximum power is increased by 30% on the basis of 100cc, and the maximum torque is increased by 25%. At low and medium speeds, it can maintain sufficient large torque and large power. When matched with high-speed ratio CVT, it can greatly improve fuel consumption and achieve excellent acceleration. Sense and comfort.

Equipped with the brand-new "constant and stable energy gathering system" to create an all-around "core" era
Efficient energy gathering, strong power, full combustion, lower fuel consumption, technological innovation, stable start-up, multiple protections, and durability.

Improve accuracy and reduce noise
The integral cylinder head is used to increase the height of the cam bracket, and at the same time, the assembly accuracy is improved, which reduces abnormal noise and makes the engine work quieter.
Adopt a suitable air inlet to ensure fuller and smoother inhalation and improve combustion. The use of a 13mm diameter roller valve rocker arm greatly reduces the friction of the cam working surface, which can reduce mechanical losses and increase the service life of the rocker arm and camshaft.

Technological innovation to reduce fuel consumption
The axis of the cylinder bore of the engine is moved down relative to the axis of the crankshaft to reduce the maximum side pressure of the piston, so as to maximize the use of the energy generated by gasoline combustion, improve fuel efficiency, and improve fuel consumption. By reducing the area of ​​the piston root, thin piston rings are used to realize the piston The weight of the assembly is lighter, thereby reducing the movement loss and increasing the effective power. The ignition position of the spark plug is closer to the center of the combustion chamber, and the combustion is more complete, thereby improving fuel consumption.

Multiple protection, durable.
The engine is equipped with a secondary oil filter system. The oil passes through the double filter system. The filter effect is better, which greatly reduces internal wear and makes the engine more durable. The newly designed decompression mechanism is simple and can ensure the continuous efficiency of the engine speed below 1000r/min. Decompression makes the foot start easier and less effort, and at the same time, it also prolongs the service life of the starter motor and battery.

LSSC system
The original and stable energy-gathering starts, accelerates, and is more comfortable than you can imagine

Quality Technology Power
PRODUCT SPECIFICATIONS
Engine model
JL1P50QMH-2(J23L 110)
Type
Single cylinder、4-stroke、forced air-cooled
Cylinder diameter (mm)
50mm
Piston stroke (mm)
55.1mm
Total displacement (ML)
108.2ml
Compression ratio
9.5:1
Maximum power and corresponding crankshaft speed (kW / RPM)
6.0kW/7500rpm
Maximum torque and corresponding crankshaft speed (N.m / RPM)
8.5N.m/6000rpm
Minimum no-load stable speed (RPM)
1700r/min
Company Profile
FAQ
Q1: Can I have a sample for testing?

A: Actually we think samples are not very important.

You can buy from anywhere. But we think our charges will better then any others.

Samples will be 10% higher then the charge.

Q2: Can I add my logo on the scooter and packaging?

A: Yes, OEM and ODM are available for us.

But you should send us the Trademark authorization letter.

Q3: How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

Q4: Do you have inspection procedures for scooters?

A: 100% self-inspection before packing.

Q5: Can we mix the 20ft container?

A: Yes, if the items are meet our min order qty.

Q6: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory.

Here is our factory address: Tangshang Village, Jinqing Town, Luqiao Dist., Taizhou, Zhejiang, China.

Our factory is near Taizhou Airport. We can pick you up in the airport.

Hotel booking service is available.
